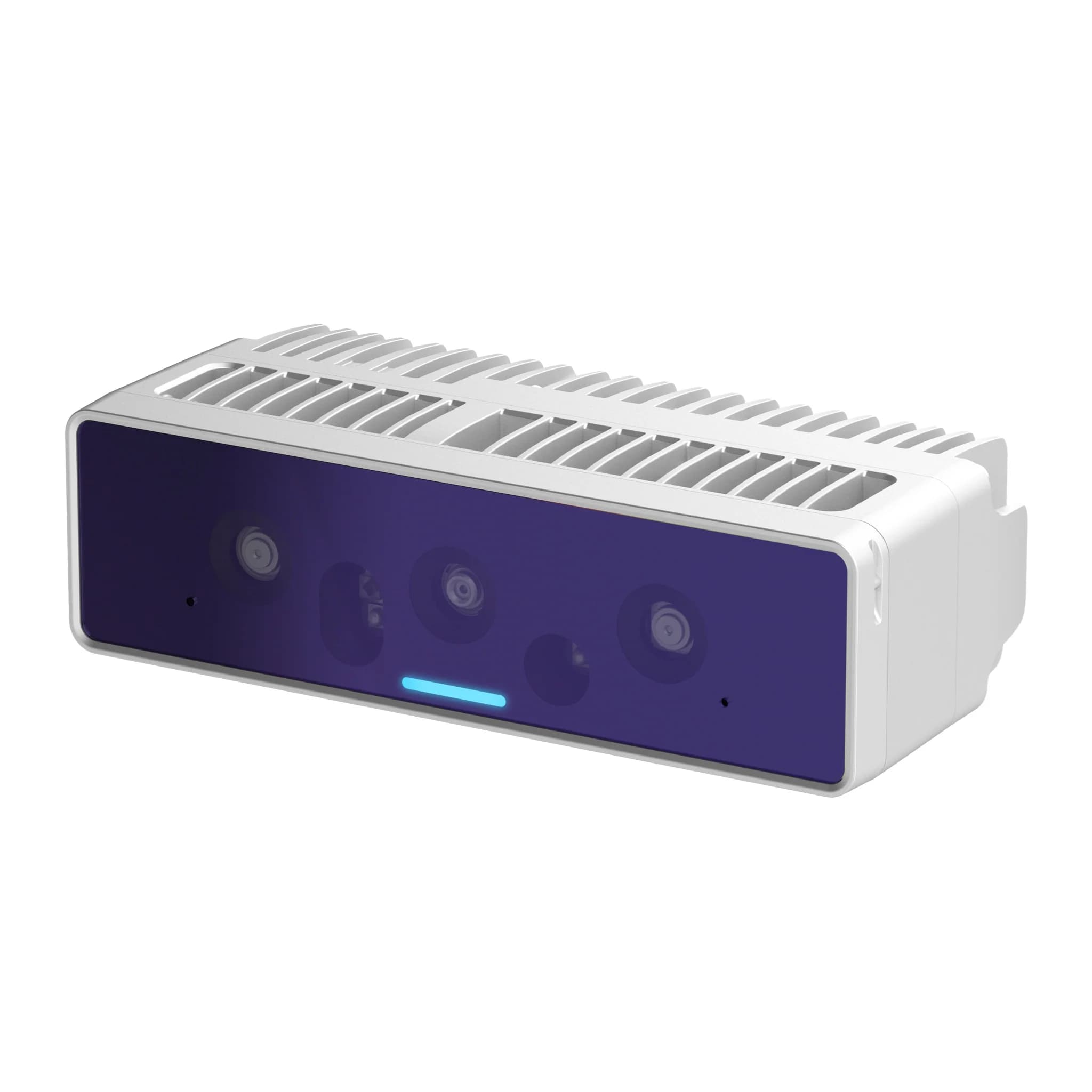

OAK 4 D Pro
The Ultimate Edge Inference and Stereo Vision Camera
This stand alone device is perfect for robotic vision and automated systems, combining active stereo depth camera and high-resolution color camera with on-device Neural Network inferencing and Computer Vision capabilities.
Pro version is advised for application that require high-quality and reliable stereo depth perception in any kind of environment, including low-light, and texture-less scenes.
Key Features
RVC4 on-board features:
- 8-core ARM CPU (QC Snapdragon 8-series), 8GB RAM, 128GB of storage
- Operated by Luxonis OS, based on Linux kernel 5.15
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- AI: 48 TOPs (INT8) and 12 TOPs (FP16) operations
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- Object tracking: 2D and 3D tracking with ObjectTracker node

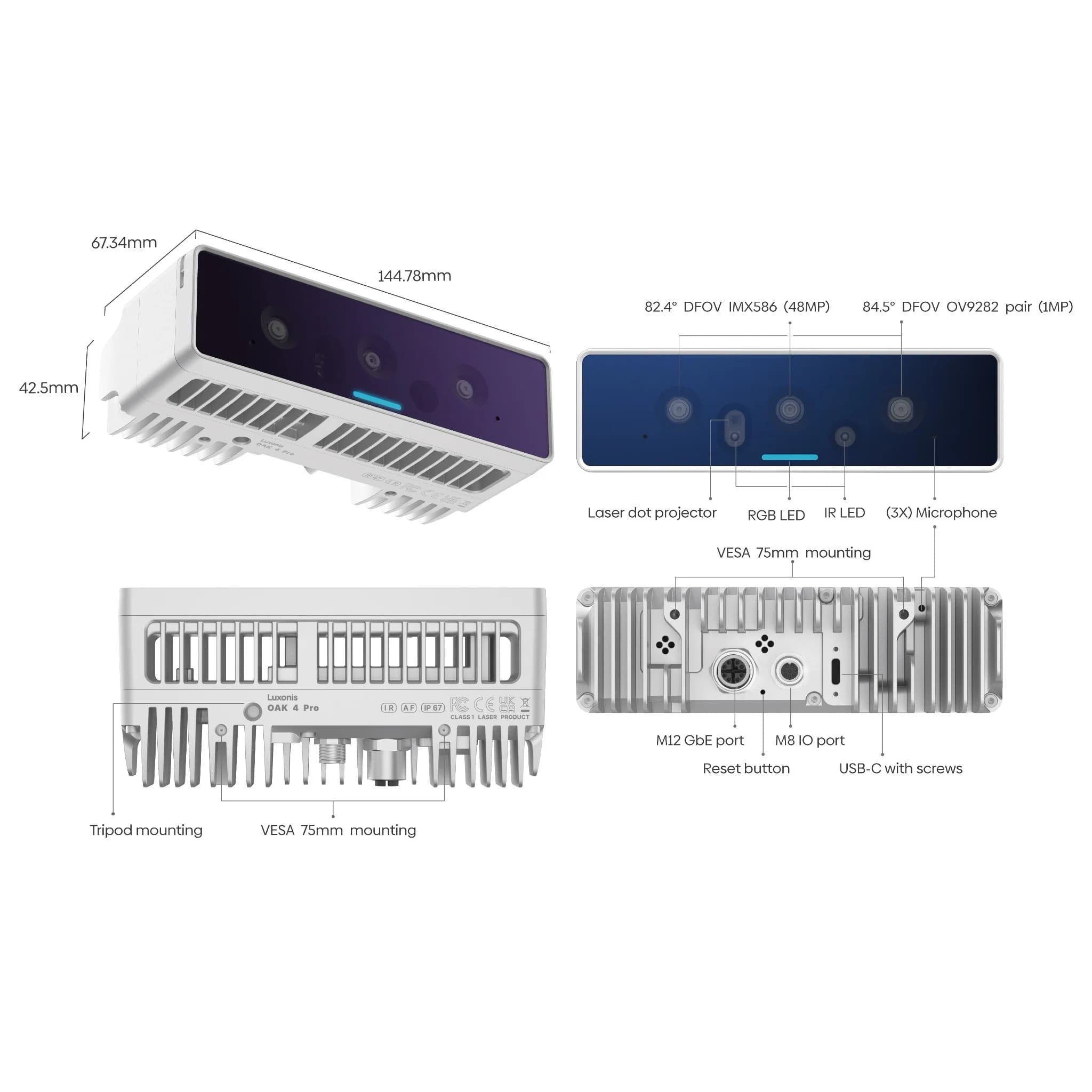

Specifications
- Base line: 75 mm
- Ideal depth range: 70 cm - 12 m.
- Power consumption: up to 25W
- Housing:
- Industrial grade aluminum with Front Gorilla Glass
- Water resistance enclosure with IP67 rating - Mounts:
- 1/4" tripod mount
- 75mm M4 Vesa mount on back and bottom cover
- Dimensions: 143.5 x 42.5 x 67.3 mm
- Weight:
- 674g
